· Netzwerk & Performance
· 8× 10/100/1000 Mbps RJ45
· Backplane: 16 Gbps
· Weiterleitungskapazität: 11,9 Mpps
· Jumbo Frames: bis 16 KB
· MAC-Adresstabelle: 8K
· Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x (Flow Control), 802.3ad (Link Aggregation)
· Management & Security (L2+)
· VLAN: port-basiert & 802.1Q tag-basiert
· VLAN-Interfaces: bis zu 32; Static ARP & Static Routing
· Spanning Tree: STP / RSTP / MSTP; Ring-Protokoll: EAPS
· Link Aggregation: bis zu 8 Gruppen
· QoS: 4 Warteschlangen pro Port; Rate Limit ab 64 kbps
· Multicast: 512 Gruppen, IGMP Snooping / MLD Snooping
· ACL: IP / MAC / ARP; Port Isolation, Loop Detection, Port Mirroring
· Authentifizierung: RADIUS, TACACS+
· Management: Web-GUI, SNMP, CLI, Telnet, SSH, RMON
· IPv6: ICMPv6, ND, IPv6 Telnet
· Design & Montage
· Komplett lüfterlos (passive Kühlung)
· Metallgehäuse
· 10-Zoll-Rackmontage / Desktop
· Gewicht: ca. 2 kg
· Elektrik & Umgebung
· Internes Netzteil, 100240 V AC
· Stromverbrauch: ~10 W
· Betriebstemperatur: 040 °C; Lagerung: 1070 °C
· Luftfeuchtigkeit: 595 %, nicht kondensierend
· 8× 10/100/1000 Mbps RJ45
· Backplane: 16 Gbps
· Weiterleitungskapazität: 11,9 Mpps
· Jumbo Frames: bis 16 KB
· MAC-Adresstabelle: 8K
· Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x (Flow Control), 802.3ad (Link Aggregation)
· Management & Security (L2+)
· VLAN: port-basiert & 802.1Q tag-basiert
· VLAN-Interfaces: bis zu 32; Static ARP & Static Routing
· Spanning Tree: STP / RSTP / MSTP; Ring-Protokoll: EAPS
· Link Aggregation: bis zu 8 Gruppen
· QoS: 4 Warteschlangen pro Port; Rate Limit ab 64 kbps
· Multicast: 512 Gruppen, IGMP Snooping / MLD Snooping
· ACL: IP / MAC / ARP; Port Isolation, Loop Detection, Port Mirroring
· Authentifizierung: RADIUS, TACACS+
· Management: Web-GUI, SNMP, CLI, Telnet, SSH, RMON
· IPv6: ICMPv6, ND, IPv6 Telnet
· Design & Montage
· Komplett lüfterlos (passive Kühlung)
· Metallgehäuse
· 10-Zoll-Rackmontage / Desktop
· Gewicht: ca. 2 kg
· Elektrik & Umgebung
· Internes Netzteil, 100240 V AC
· Stromverbrauch: ~10 W
· Betriebstemperatur: 040 °C; Lagerung: 1070 °C
· Luftfeuchtigkeit: 595 %, nicht kondensierend
| Allgemein | |

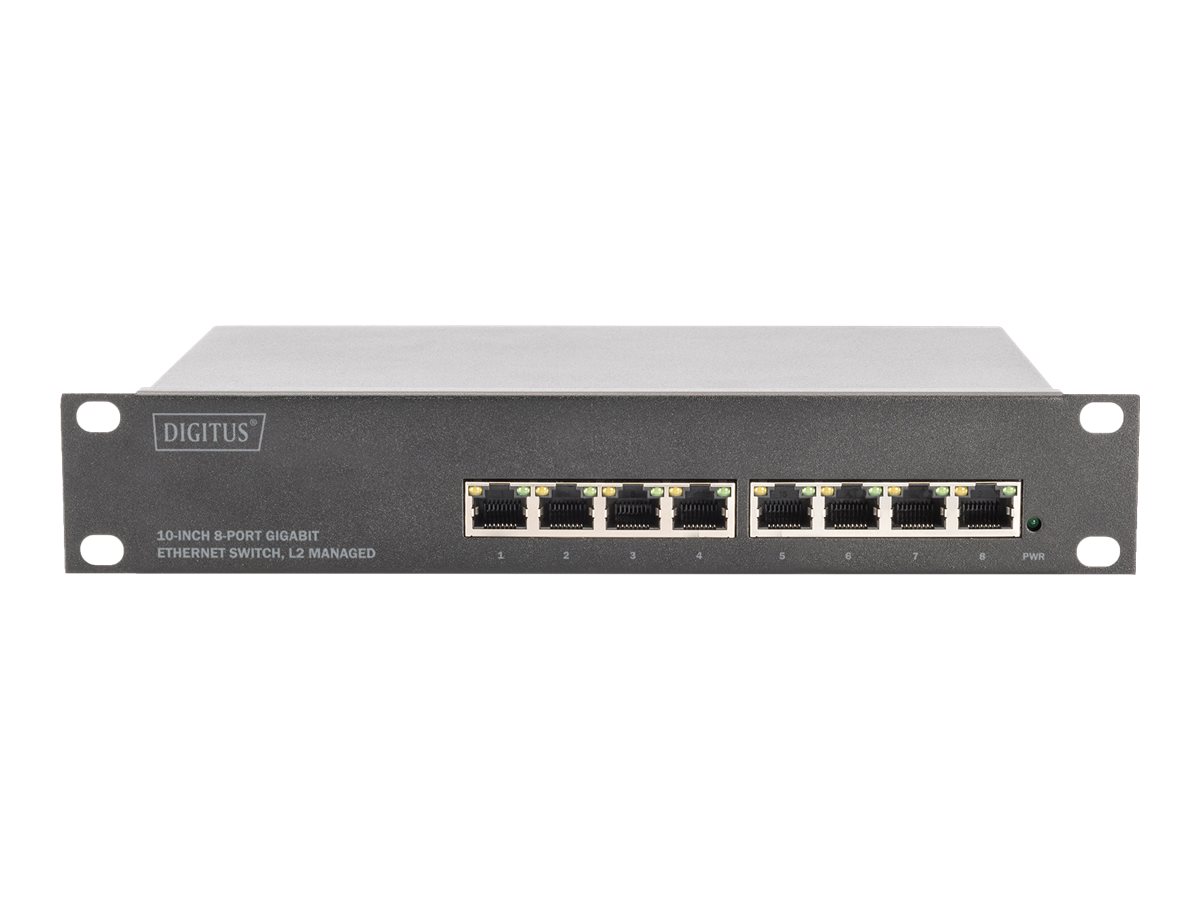

| Produktbeschreibung | DIGITUS DN-80117 - Switch - 8 Anschlüsse - managed - an Rack montierbar |
| Gerätetyp | Switch - 8 Anschlüsse - L2+ - managed |
| Gehäusetyp | An Rack montierbar 1U |
| Untertyp | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 |
| Leistung | Bandbreite: 16 Gbit/s |
| Kapazität | Link-Aggregationsgruppen: 8 |
| Größe der MAC-Adresstabelle | 8000 Einträge |
| Jumbo-Rahmenunterstützung | 16KB |
| Routing Protocol | Statisches IP Routing |
| Remoteverwaltungsprotokoll | HTTP, SNMP, SSH, CLI, Telnet, RMON |
| Leistungsmerkmale | Anschlussisolierung, Loopback-Erkennung, Port-Spiegelung, Vollduplex-Modus, Halbduplex-Modus, Flusskontrolle, Link Aggregation, Anschluss-basiertes VLAN, gekennzeichnetes VLAN, MSTP Support, RSTP-Unterstützung, STP Support, Multicast-Modus, IGMP Snooping, ARP-Unterstützung, QoS, WRR, SP, WFQ, DSCP based QoS, ACL Support, AAA, ICMP, IPv6-Unterstützung, MLD-Snooping, Metallgehäuse |
| Produktzertifizierungen | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q |
| Stromversorgung | Wechselstrom 120/230 V (50/60 Hz) |
| Abmessungen (Breite x Tiefe x Höhe) | 25 cm x 15 cm x 4.4 cm |
| Gewicht | 1.14 kg |
